Concept Models

First Concept

Connectivity

The concept model shows the connectivity between two buildings. It is connected by a bridge that allows to circulate from one building to the other.

Second Concept

Big and Small Relationship

The concept model shows the relationship between the density of each of the buildings.

Third Concept

Lighting and Shade Relationship

The concept shows the lighting through the windows and openings that is found in the building, and the shade that the lighting gives inside the building.

Fourth Concept

Geometry

The concept model shows the fusion of geometric shapes and how these different shapes together make one geometrical shape.

Fifth Concept

Intimacy

The model shows the intimacy in the middle of the model and how to move from a non intimate to an intimate space.

Sixth Concept

Distribution

The following model shows the movement inside of the building moving from one space to another.

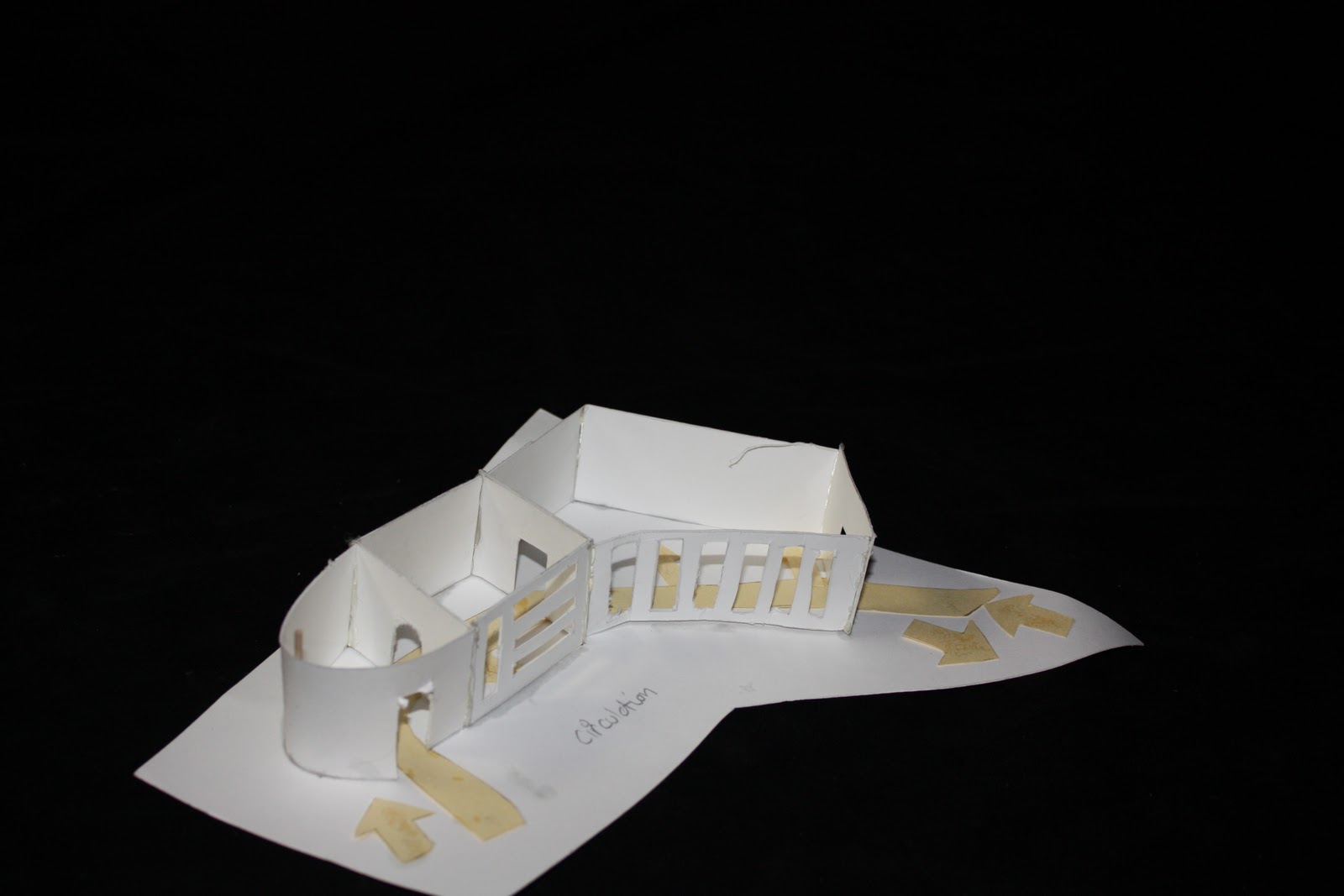

Seventh Concept

Circulation

In the following model, I was trying to show the circulation in the inside of a building. The arrows show how the people move around.

Eight Concept

Hierarchy

The following model represents the influence a structure brings depending on it size, shape, form, connection, etc.

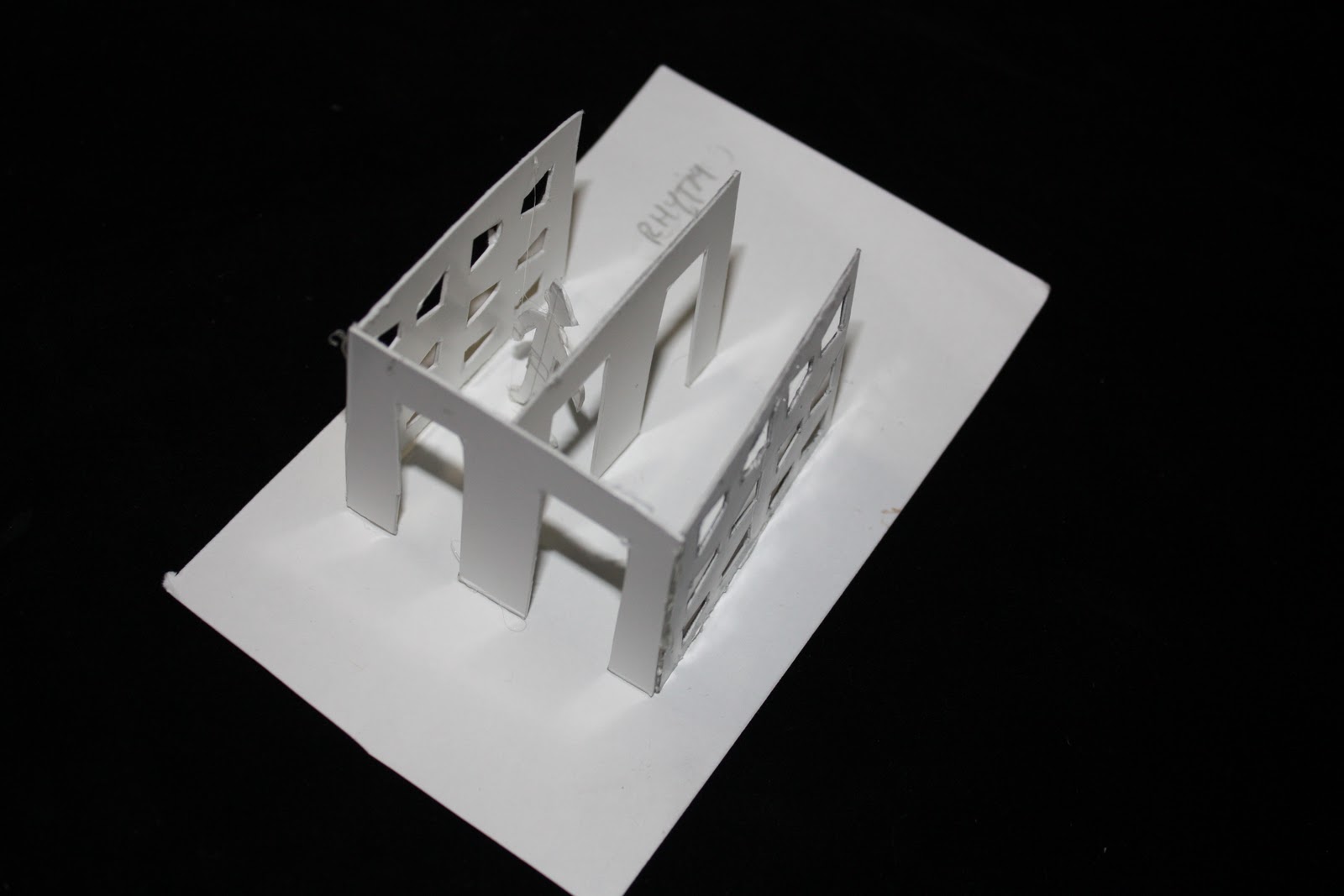

Ninth Concept

Rhythm

In this model, I tried to implement rhythm through window openings, the man shows how does it feel to be located in a particular space that has the same rhythm of windows through a hallway knowing what you are going to expect from start to the end.

Tenth Concept

Pattern

In this model, I wanted to implement the pattern an individual must travel to get to a certain destination.

Eleventh Concept

Shelter

 In this model, I wanted to show how an individual could find shelter space if the place is accessible to get inside. For example, the bus stops where people find shelter once there is bad weather conditions. Therefore, the model tries to implement the same idea.

Twelfth Concept

Axis

In the following model, I wanted to demonstrate axis, the way people can circulate around depending on the straight direct axial spaces found in a building, corridor, pattern, etc.

Thirteenth Concept

Community Integrity

In the following model, I wanted to show the integration of the different buildings in the surroundings to gather people together to a structure and work as a community.

Fourteenth Concept

Inner Harmony

In this model, I wanted to implement the idea of inner harmony and relaxation by implementing a relationship between the user and exterior environment. For example, the space designed is for an individual laying down in a bed with access to view the night sky. In this scenario, it will give the user the opportunity to relax by observing the sky working like a massage room in a spa.
